An electrical honey extractor is one of the most valuable tools for modern beekeepers, allowing you to spin honey from frames quickly and with far less manual effort. But before you can enjoy smooth, efficient extraction, proper setup is essential. This guide will walk you through how to install an electrical honey extractor so you can start harvesting honey safely and confidently.
Preparation Before Installing Your Electrical Honey Extractor
Clearing Your Work Area
Make sure the work area meets the following conditions:
- No children, bystanders, or pets
- Clean and clear of any clutter or dirt that may affect operation or pose safety hazards
- Well-lit and ventilated but adequately protected from the elements
- Free of explosives and sources of heat such as firecrackers and open flames
Putting on Proper PPE
Hand, breathing, and eye protection is required and should meet the standards by ANSI
(American National Standards Institute) or OSHA (Occupational Safety and Health Administration).
The recommended ones include:
- Safety Gloves
- Safety Glasses or Face Shield
- Long-sleeved Clothing
- Long Pants
- Appropriate Footwear
Note: Using this device WITHOUT proper PPE may result in bee stings or other safety
hazards.
How to Install an Electrical Honey Extractor: A Step-by-Step Guide

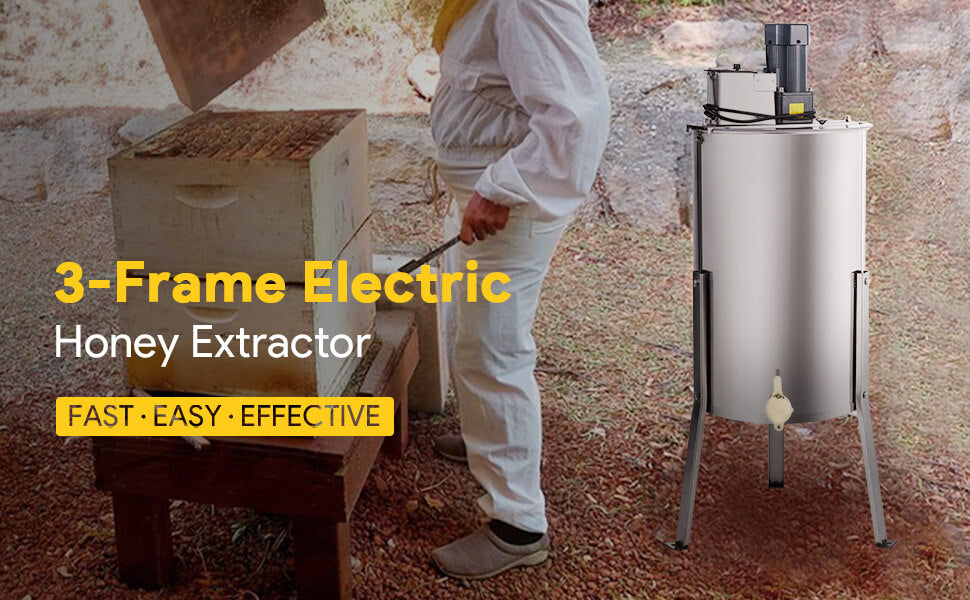

This guide uses the CO-Z Electric Honey Extractor (3 Frame) as an example. If you are using a different model, the installation process may vary slightly, so please make sure to refer to the instruction manual that comes with your specific machine.
Part 1 Unpacking the Honey Extractor
1. Take out the honey extractor from the packaging box, and carefully place it on a stable and level surface.
2. Open the lids and take out the support legs (C), honey gate valve (D), bolts (E), and
bushing (F) from the barrel. Check the parts according to the Specifications. If any parts
are damaged or missing, contact your local dealer or contractor for a new one.
3. Rotate the inner basket by hand slightly to see if it works properly.
Part 2 Installing the Support Legs
1. Lay the honey extractor down CAREFULLY and hold it.
2. Place the support legs onto the leg brackets around the barrel, aligning the holes.
3. Thread the bolts (M8×16) into the holes and tighten them with a 14 mm hex socket wrench (not included).
4. Straighten the honey extractor. Shake it GENTLY to ensure the legs are well-installed and the extractor is placed stably.
Part 3 Installing the Honey Gate Valve
1. Put the honey gate valve from outside of the barrel into the pre-drilled hole.
2. Tighten it up by hand with the hex nut from inside of the barrel.
Part 4 Cleaning the Honey Extractor Before First Use
Clean the honey extractor with detergent and water, then ensure it is completely dry before first use.
Why We Recommend the CO-Z Electric Honey Extractor (3 Frame)
If you’re looking for a reliable and efficient solution for home or small-scale beekeeping, the CO-Z Electric Honey Extractor (3 Frame) stands out for its design, durability, and ease of use. Here’s why it’s highly recommended:
-
Sturdy and Reliable Structure
Built with food-grade polished stainless steel and seamless welding for excellent durability. The rust-resistant drum holds up well to long-term use. -
High-Speed Motor
Equipped with a 140W, 1.1A motor that reaches up to 1300 rpm. The variable speed control and high-precision bearing ensure smooth performance and long service life. -
Efficient 3-Frame Capacity
Designed to process up to 3 frames at once—deep, medium, or shallow. The slightly rounded interior helps protect honeycombs during extraction. -
Easy Honey Flow & Visibility
The built-in honey gate allows honey to flow effortlessly into your container, while dual transparent plexiglass lids let you monitor the entire process.
Conclusion
Installing your extractor correctly is the first step toward a smoother, more efficient honey-harvesting season. A stable setup, a secure electrical connection, and proper frame placement help protect both your equipment and your honey. Once you understand how to install an electrical honey extractor, you’ll find that operating it becomes simple, safe, and highly rewarding.
