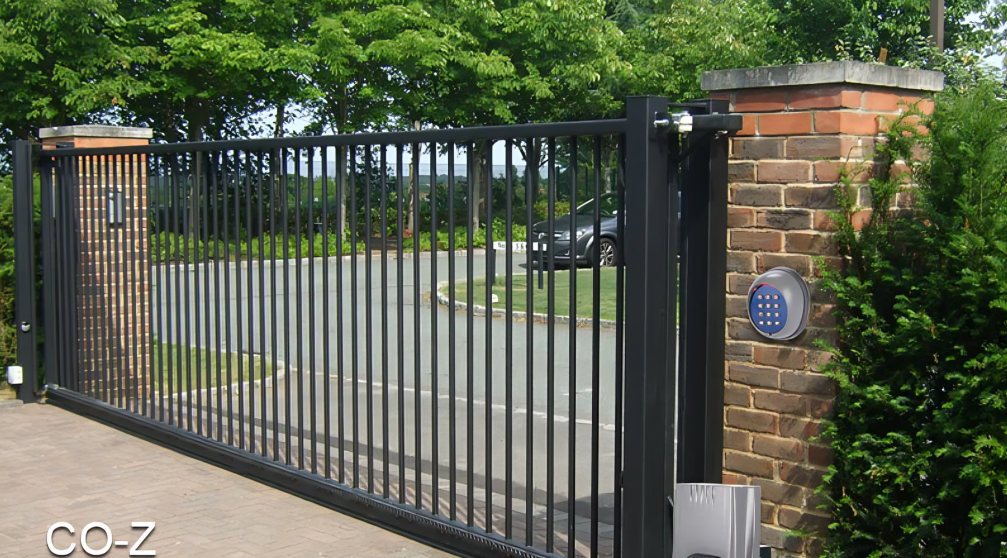

A sliding gate opener chain plays a critical role in how your automatic gate operates. It connects the motor to the gate itself, allowing the opener to pull the gate smoothly along its track. When installed correctly, the chain helps ensure quiet operation, consistent movement, and long-term reliability. When installed poorly, it can lead to noisy operation, uneven movement, or unnecessary strain on the motor. This step-by-step guide walks you through how to install a sliding gate opener chain properly, helping you achieve smooth, dependable gate operation from day one.
Tools and Materials You’ll Need
This installation guide uses the CO-Z 1400 lb Sliding Gate Opener as a demonstration example. Installation steps and hardware details may vary slightly depending on the model and manufacturer, so please refer to your specific product’s instruction manual for exact requirements.
Before you begin, gather the following items to make the installation process easier and safer:
Step-by-Step: How to Install the Sliding Gate Opener Chain
With the tools prepared and the gate opener properly mounted, you’re ready to begin installing the chain. Correct chain installation is essential for smooth, stable gate movement, so it’s important to follow each step carefully. For this guide, we use the CO-Z 1400 lb Sliding Gate Opener as the installation example. While the overall installation process is similar across most chain-driven sliding gate openers, specific hardware components and mounting details may vary by model. Please refer to your product’s instruction manual for model-specific requirements.
1. Ensure the gate is closed.
2. Remove the sprocket cover.
3. Attach the tie rods to the tie rod bracket as shown. NOTE: Do not fully tighten the M8 nuts for now.
4. Take out one chain and fasten one end of the chain to a tie rod.
5. Insert either manual release key, turn it counterclockwise, and open the release bar 90° to put the motor into manual mode.
6. Wind the chain around the one idle sprocket, the main sprocket, and the other idle sprocket.
7. Place the bracket with the assembled chain onto the gate, ensuring that the tie rod aligns with the chain's centerline at the top of the sprocket (a = b). If drilling is required, first mark the chain bracket mounting positions.
NOTE: For optimal performance, mount the chain brackets at both ends of the gate to achieve full-width chain coverage.
8. Secure the chain bracket using square bolts, round bolts, or M6 bolts. Drill holes in the gate as needed.
9. Measure the height of the chain bracket. Determine the installation position (a = b) for the other bracket on the opposite side of the gate. Install the chain bracket in the same manner.
10. Straighten the chain and ensure that the chain end can be properly installed on the tie rod on the bracket. The chain should not be overtightened; it must maintain proper sag (d). Adjust the chain length by cutting off excess or adding a 6 m section. If additional length is still needed, purchase #41 chain.
11. Fasten the chain end to the tie rod.
12. Adjust the M8 nuts on each tie rod until your preferred tension is reached. Maintain the proper sag (d).
13. Check if the chain is aligned horizontally with all three sprockets (a = b = c).
If needed, loosen the M8 nuts, adjust the tie rods for alignment (a = b = c), then tighten.
Common Mistakes to Avoid
-
Installing the chain at an angle instead of keeping it level with the drive sprocket
-
Over-tightening the chain, which can reduce motor lifespan
-
Using loose or improperly secured mounting hardware
-
Ignoring gate track or roller issues before installing the chain
Avoiding these common errors will help ensure reliable gate performance and reduce maintenance needs over time.
Choosing the Right Sliding Gate Opener for Chain-Driven Systems
Chain-driven sliding gate openers are especially well-suited for heavier gates or longer gate spans, because they offer reliable power transfer and consistent operation even under frequent use. When selecting an opener, you’ll want to look for:
-
Sufficient motor power to handle your gate’s weight and length
-
Durable chain components and solid mounting hardware
-
Clear, easy-to-follow installation instructions
A well-matched opener not only makes installation easier but also helps the chain operate smoothly and consistently, reducing wear on both the gate and the motor. For example, the CO-Z Hevy‑Duty 1400 lb Sliding Gate Opener is a heavy-duty, chain-driven solution designed for gates up to 1,400 lb and up to 40 ft long, offering a robust 280 W motor with smooth movement and remote control convenience. This type of opener is powerful enough for most residential and light commercial sliding gates, and its durable construction helps ensure long-term performance with correct chain installation.
Conclusion
Installing a sliding gate opener chain correctly is essential for smooth, safe, and dependable gate operation. By following these steps carefully and paying close attention to alignment and tension, you can prevent common issues and extend the life of your gate opener system. With the right setup and a quality chain-driven sliding gate opener, your automatic gate will operate efficiently and reliably for years to come.
