Automatic Swing Gate Opener Kit, for Gates up to 660 lb & 18 ft

If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic swing gate opener as a crucial addition to your security measures.

Working with gates up to 660 pounds and 18 feet in length, this electric gate opener is a must have for your property. The electric swing gate opener operates smoothly and quietly with its energy efficient 50W all-copper motor, opening and closing your swing gate at 3 feet per minute. Once open, the gate will automatically close behind you after a custom set time of 15, 30, 60 or 90 seconds. The remote controls are effective up to 98 feet while the manual release keys serve as reliable backups.

What are you waiting for? You are only a driveway gate opener away from improved property value and a safer, more convenient tech-empowered life!

Features

• Open & Close Gates with Ease: With energy-efficient 50W motor, this automatic swing gate opener from CO-Z smoothly opens gates up to 660 lb. and 18 ft. at 3 ft. per minute
• Customizable Closing Times: Take complete control over your gate with our electric gate opener, allowing you to set custom closing times of 15, 30, 60, or 90 seconds once the gate is open
• Built to Withstand Any Weather: Our gate opening system is engineered to resist rain, dust, and dirt with its solid construction and IP44 casing, and can withstand extreme weather conditions from -4°F to 158°
• Safe and Reliable Gate Operation: Our electric gate opener kit ensures maximum safety by stopping and reversing your gate's direction if people or vehicles are detected
• Designed for Lasting Service: Featuring a powerful all-copper motor, an aluminum actuator, and a durable ABS casing, our gate opener complete kit provides years of dependable service without jamming

Specifications

• Material：Steel, Copper, Plastic, Aluminum
• Model：SW300DC
• Color：Black
• Rated Power：0.07 hp (50W)
• Max. Torque：390 lb.-ft. (523 N·m)
• Max. Capacity：660 lb. (300 kg)
• Max. Piston Speed：3 fpm (0.9 m/min.)
• Max. Stroke Length：13 in. (33 cm)
• Max. Noise：58 dB
• Operating Temp. Range：-4 to 158°F (-18 to 70°C)
• Weatherproof Rating：IP44
• Max. Remotes：32
• Remote Range：98 ft. (30 m)
• Remote Frequency：433.92 MHz
• Power Cord Length：4 ft. 11 in. (1.5 m)
• Dimensions：28 x 3.9 x 3.4 in. (71x10x8.6 cm)

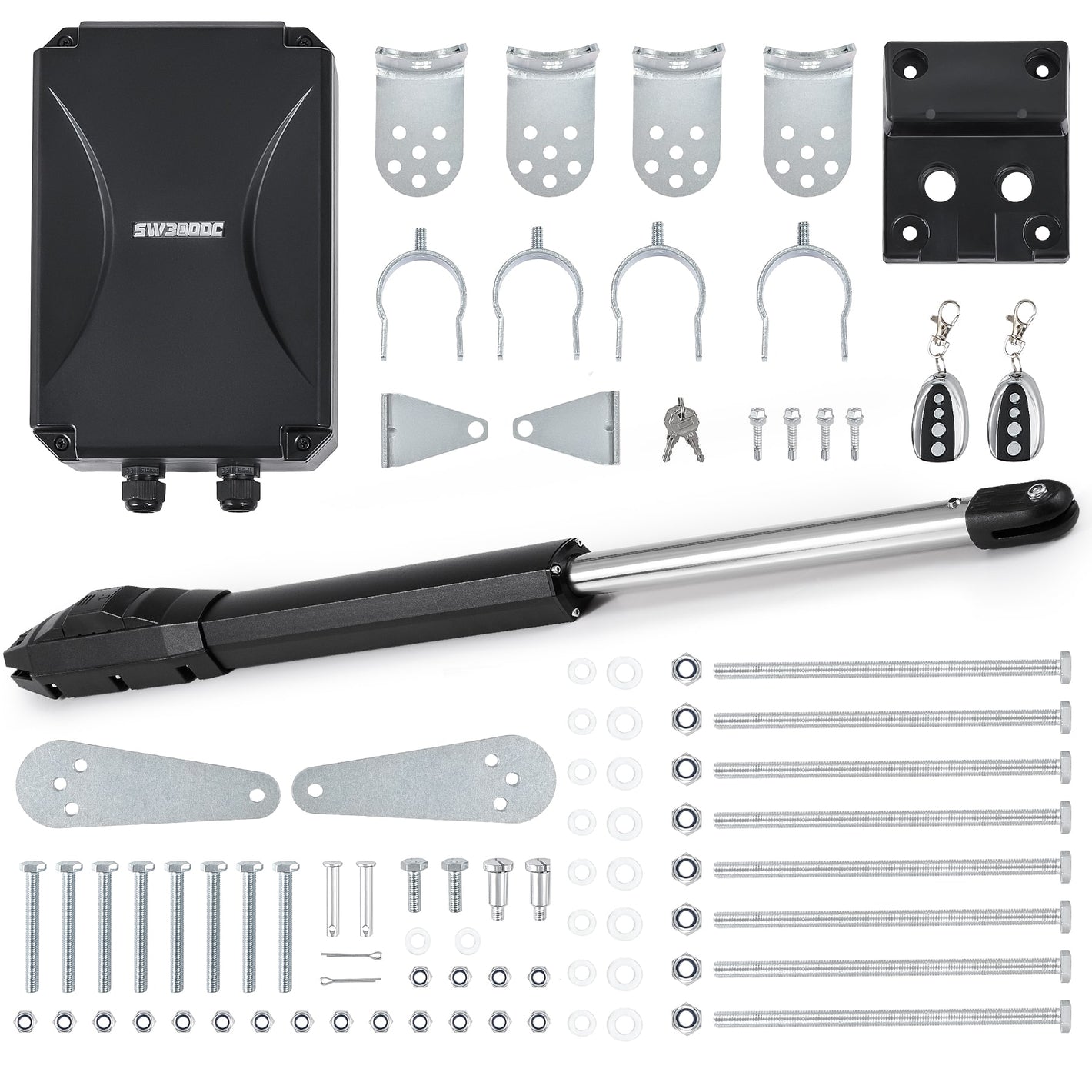

Package List

• 1x Arm Actuator
• 2x Manual Release Keys
• 2x Remote Controls
• 1x Control Box with Casing
• 2x Post Base Brackets
• 1x Post Pivot Bracket
• 1x Gate End Bracket
• 2x Gate Tube Brackets & M8 Nuts
• 4x M10x200 Bolts, Nuts, & Washers
• 4x M8x70 Bolts, Nuts, & Washers
• 2x­ M8x25 Bolts, Nuts, & Washers
• 1x Mounting Bolt, M8 Nut
• 1x 8x40 Clevis Pin & Cotter
• 2x 6.3x25 Self-Drilling Screws
• 1x Limit Stop
• 1x Warning Sign
• 1x Instruction Manual
