CO-Z Automatic Dual Swing Gate Opener Kit, for Gates up to 660 lb & 18 ft

If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic dual swing gate opener as a crucial addition to your security measures.

Working with gates up to 660 pounds and 18 feet in length, this electric gate opener is a must have for your property. The electric swing gate opener operates smoothly and quietly with its energy efficient 50W all-copper motors, opening and closing your swing gates at 3 feet per minute. Once open, the gates will automatically close behind you after a custom set time of 15, 30, 60 or 90 seconds. The remote controls are effective up to 98 feet while the manual release keys serve as reliable backups.

What are you waiting for? You are only a driveway dual gate opener away from improved property value and a safer, more convenient tech-empowered life!

Features

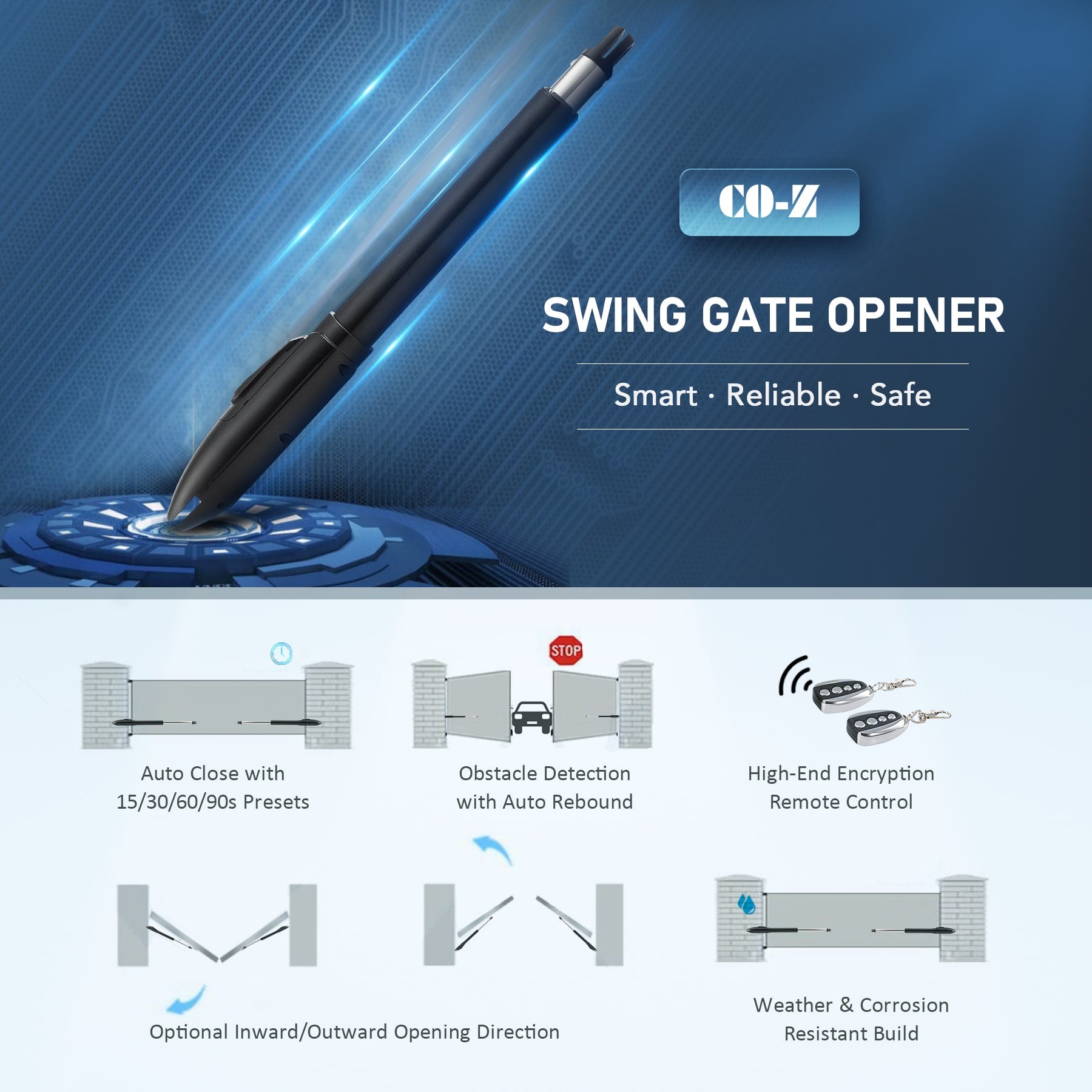

• Open & Close Dual Gates with Ease: With energy-efficient 50W motors, this automatic dual swing gate opener from CO-Z smoothly opens double gates up to 660 lb. and 18 ft. at 3 ft. per minute
• Customizable Closing Times: Take complete control over your gates with our electric double gate opener, allowing you to set custom closing times of 15, 30, 60, or 90 seconds once the gates are open

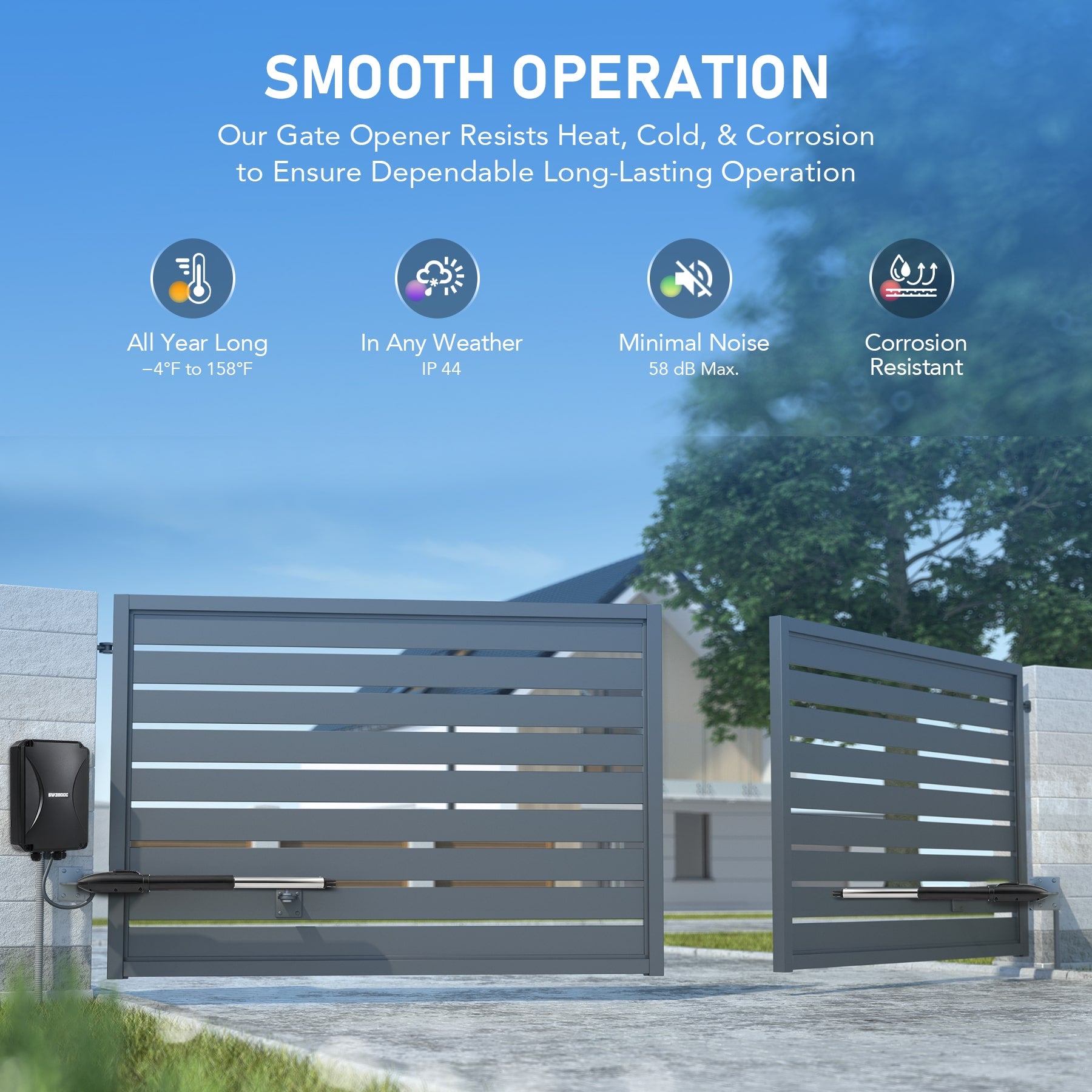

• Built to Withstand Any Weather: Our gate opening system is engineered to resist rain, dust, and dirt with its solid construction and IP44 casing, and can withstand extreme weather conditions from -4°F to 158°
• Safe and Reliable Gate Operation: Our electric gate opener ensures maximum safety by stopping and reversing your gates' directions if people or vehicles are detected

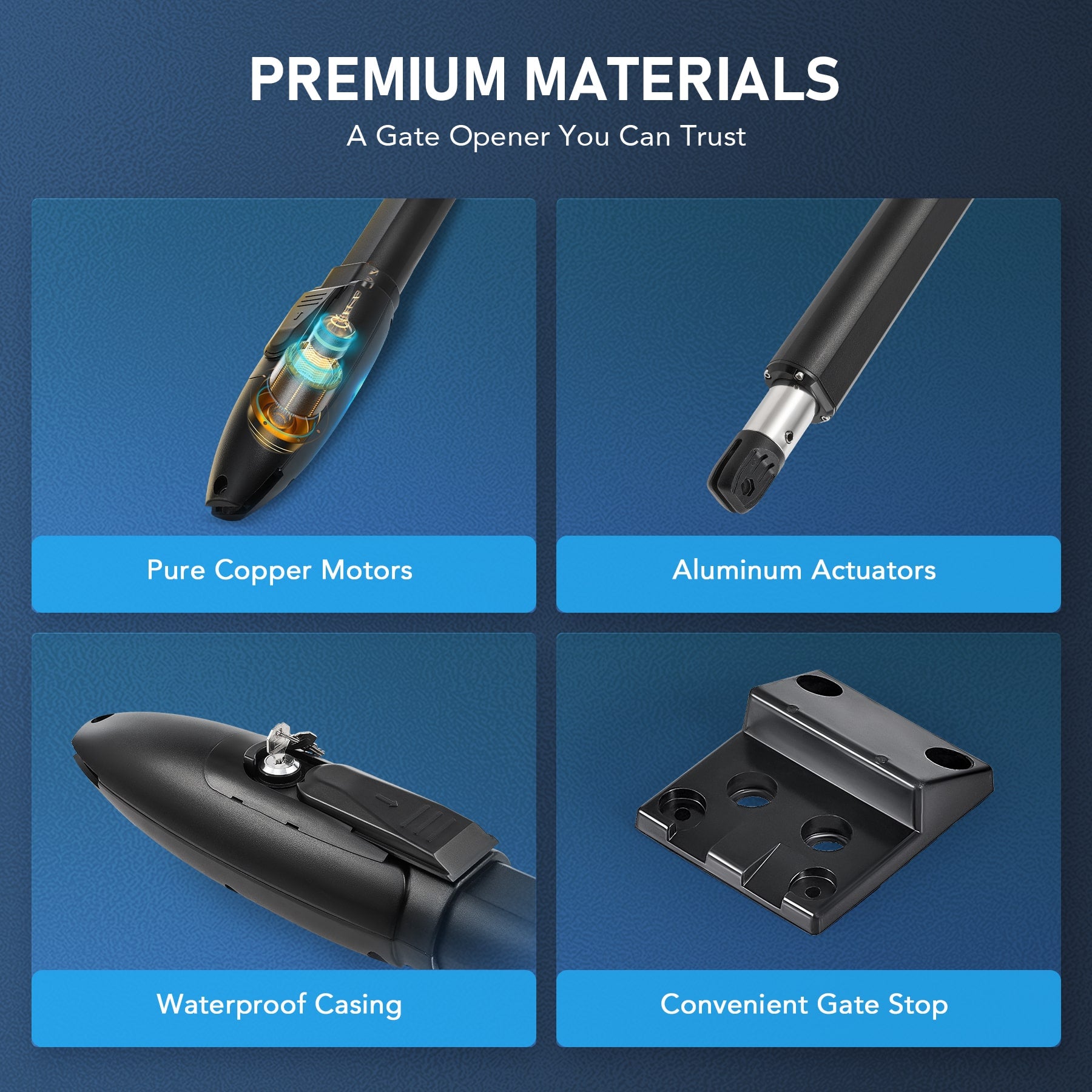

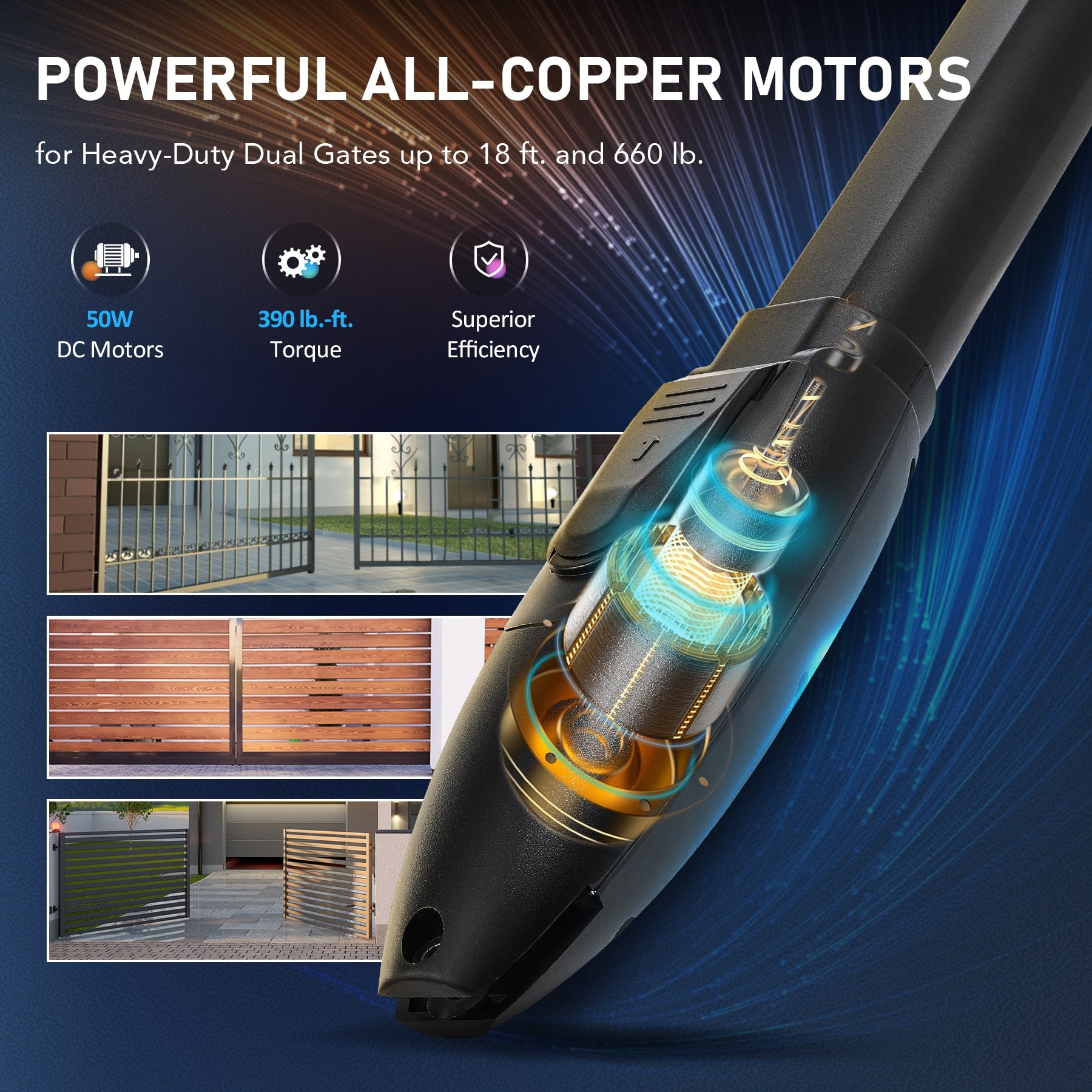

• Designed for Lasting Service: Featuring powerful all-copper motors, aluminum actuators, and a durable ABS casing, our dual gate opener provides years of dependable service without jamming

Specifications

• Material：Steel, Copper, Plastic, Aluminum
• Model：SW300DC
• Color：Black
• Rated Power：0.07 hp (50W)
• Max. Torque (ea.)：390 lb.-ft. (523 N·m)
• Max. Capacity (ea.)：660 lb. (300 kg)

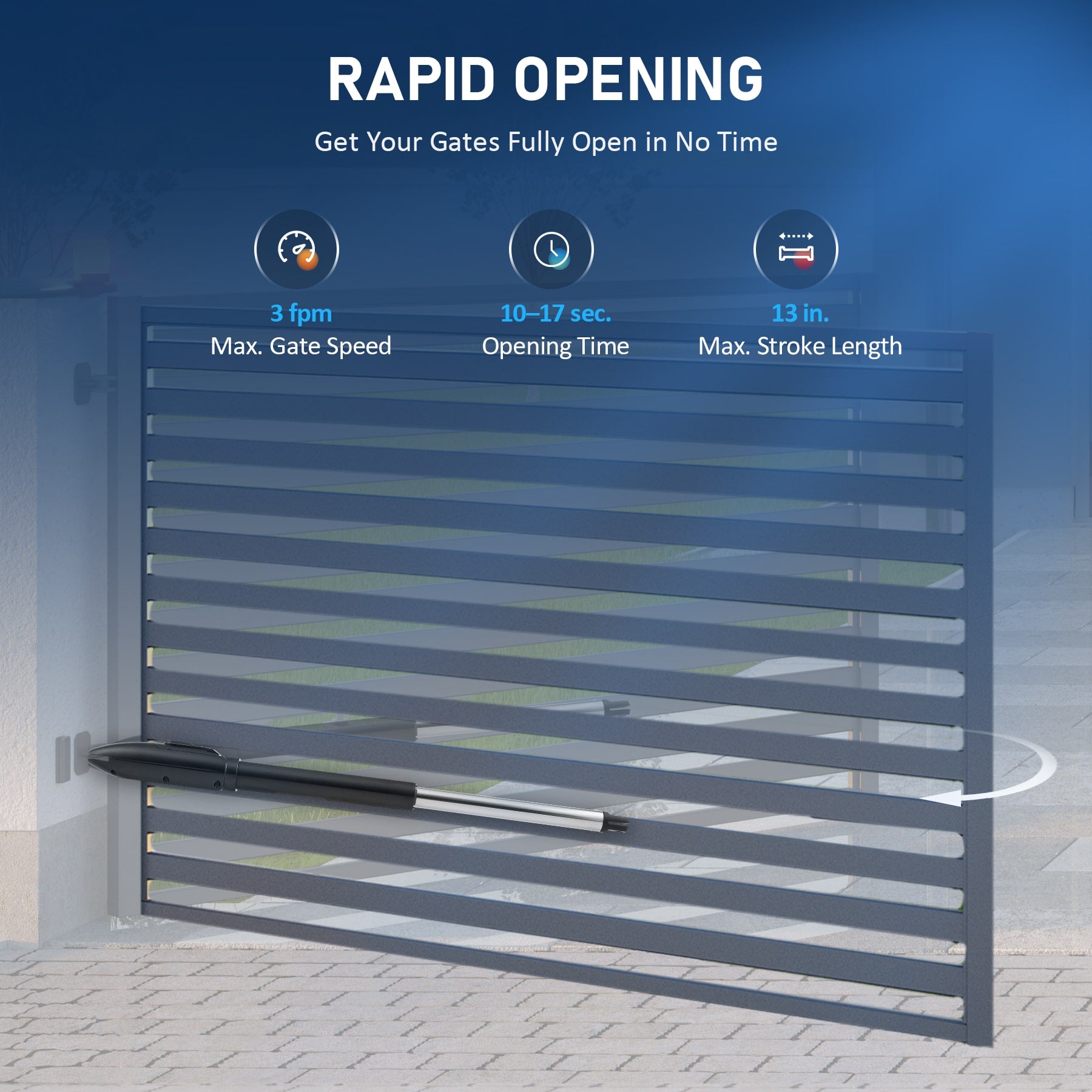

• Max. Piston Speed：3 fpm (0.9 m/min.)
• Max. Stroke Length：13 in. (33 cm)
• Max. Noise：58 dB
• Operating Temp. Range：-4 to 158°F (-18 to 70°C)
• Weatherproof Rating：IP44
• Max. Remotes：32
• Remote Range：98 ft. (30 m)
• Remote Frequency：433.92 MHz
• Power Cord Length：4 ft. 11 in. (1.5 m)

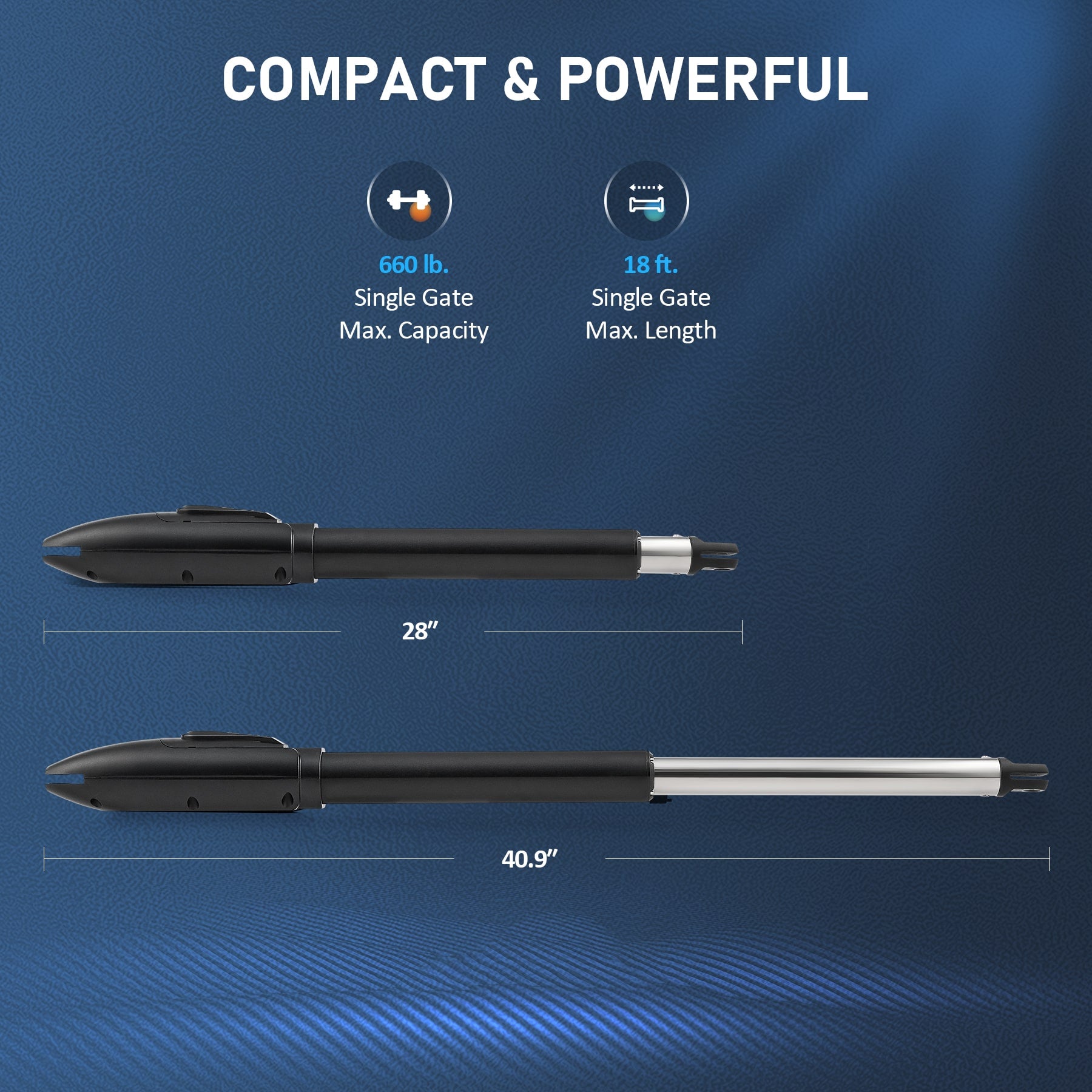

• Dimensions：28 x 3.9 x 3.4 in. (71x10x8.6 cm)

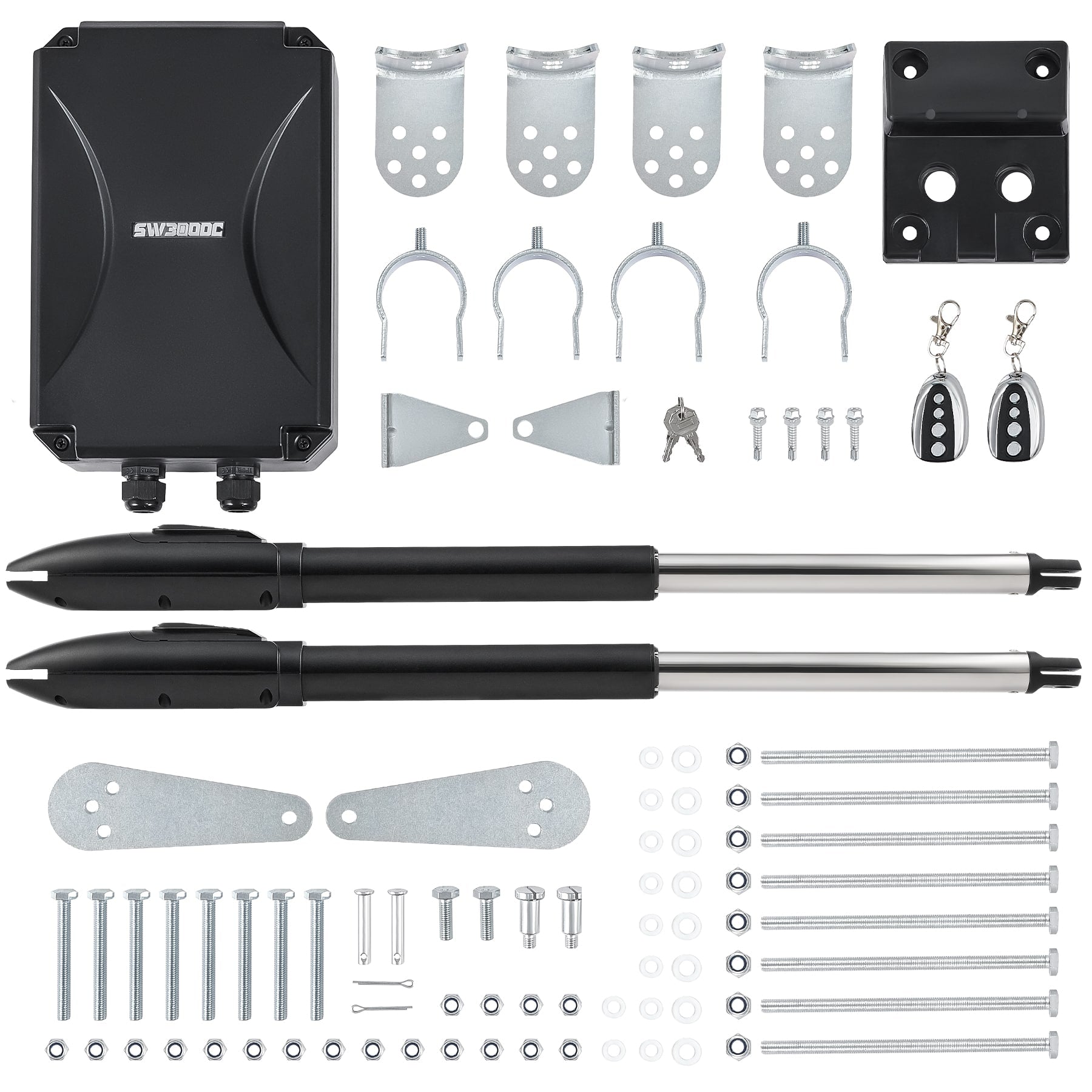

Package List

• 2x Arm Actuators
• 2x Manual Release Keys
• 2x Remote Controls

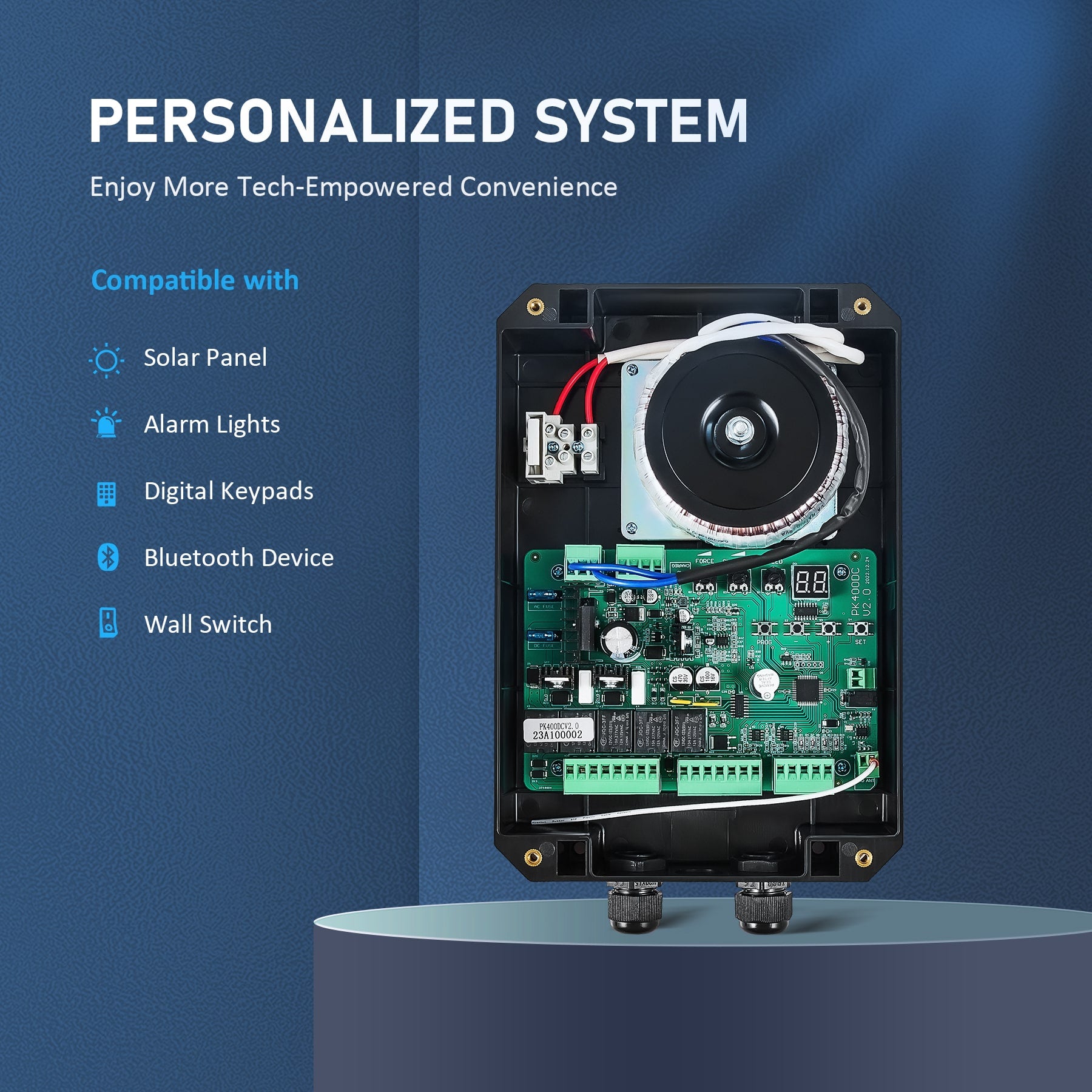

• 1x Control Box with Casing
• 4x Post Base Brackets
• 2x Post Pivot Brackets
• 2x Gate End Brackets
• 4x Gate Tube Brackets & M8 Nuts
• 8x M10x200 Bolts, Nuts, & Washers
• 4x M8x70 Bolts, Nuts, & Washers
• 2x­ M8x25 Bolts, Nuts, & Washers
• 2x Mounting Bolts, M8 Nuts
• 2x 8x40 Clevis Pins & Cotters
• 4x 6.3x25 Self-Drilling Screws
• 1x Limit Stop
• 2x Warning Signs
