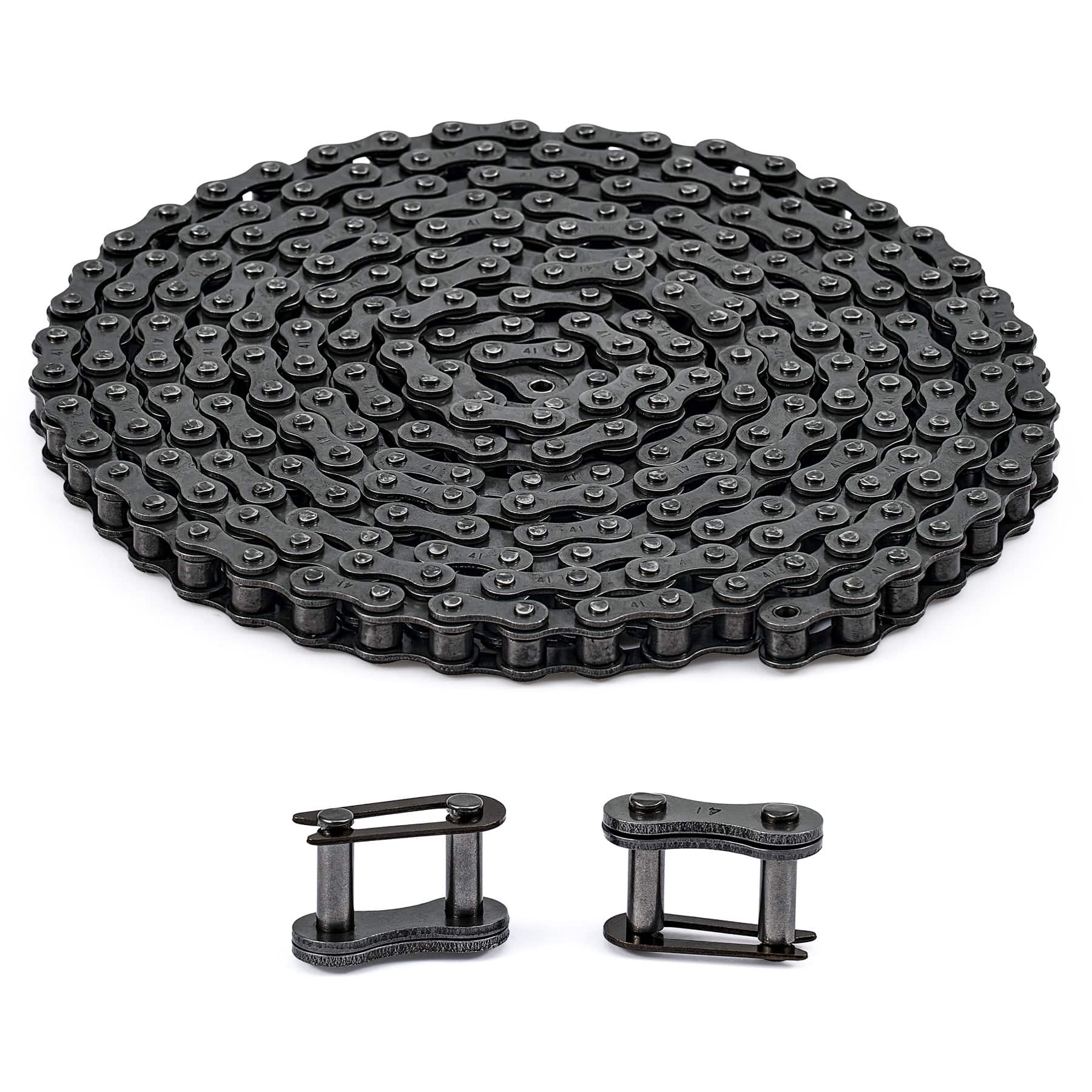

CO-Z 41 Roller Chain for Electric Gate Openers with 2 Connecting Links, 10 ft Gate Chain Extension Replacement

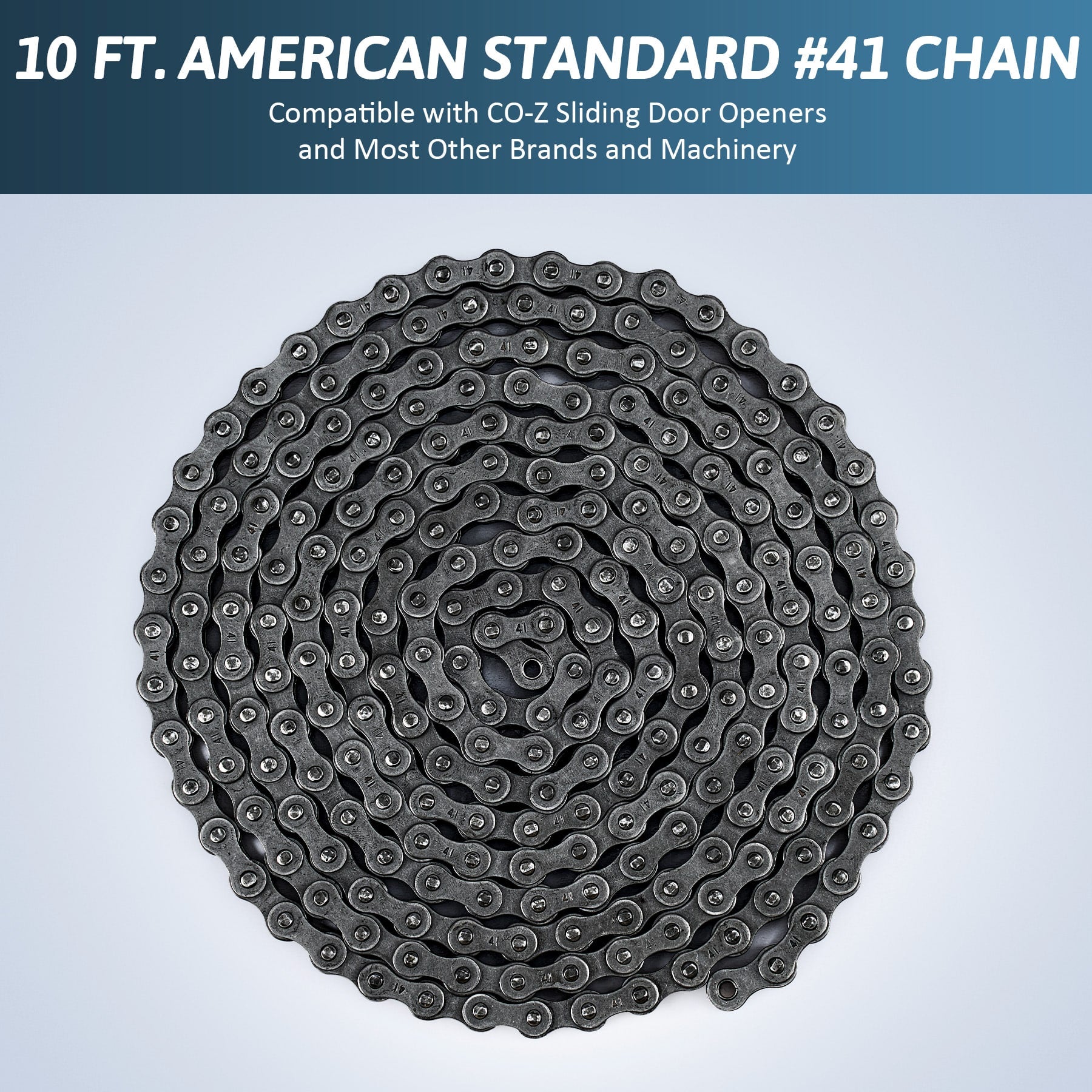

This American standard chain size #41 is a heavy-duty option for your gate operator needs. Measuring 10 feet in length, this chain boasts a maximum load capacity of 1.5 lbf. (6.67 kN) and is made of high-strength carbon steel for superior strength and durability. It is compatible with standard sprockets on CO-Z automatic sliding gate openers, as well as other brands' chain driven electric gate openers and sliding door openers, as well as other home, agricultural, and industrial equipment.

Features

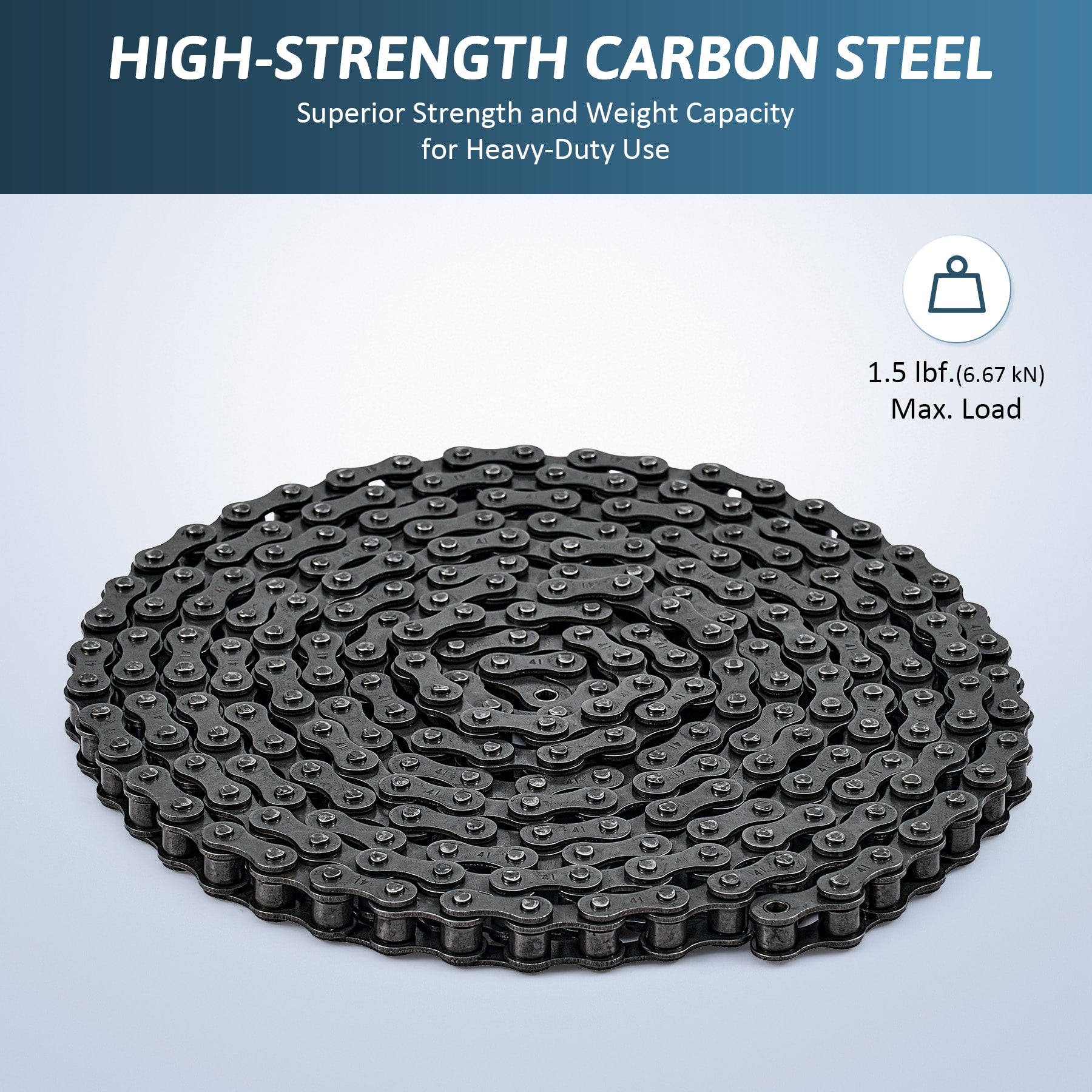

• HEAVY-DUTY STRENGTH: With American standard chain size #41 and 10 foot length, this gate operator chain is designed to meet your heavy duty needs with a 1.5 lbf. (6.67 kN) maximum load capacity and high-strength carbon steel for unfaltering durability

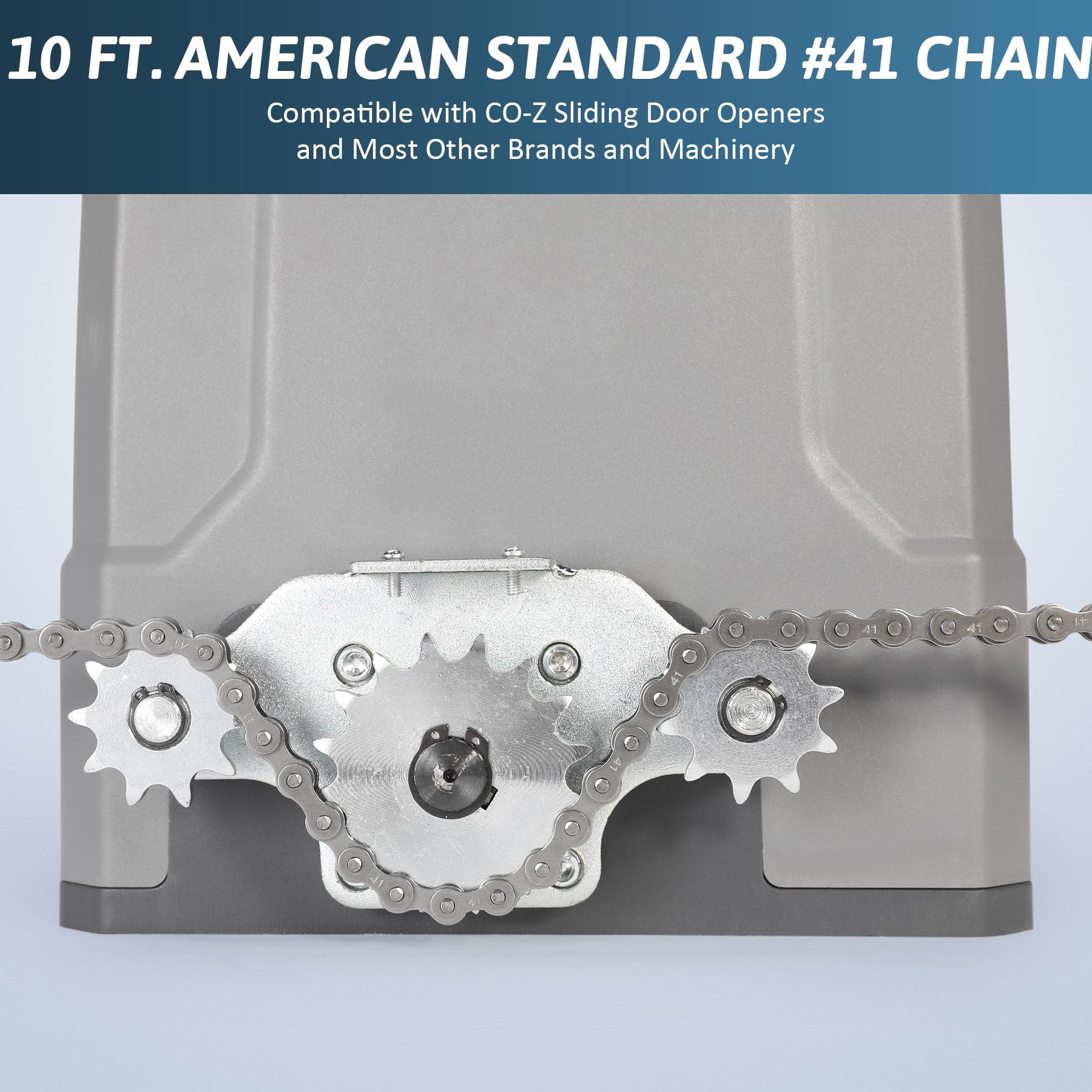

• WIDE COMPATIBILITY: The 3m chain is compatible with standard sprockets on CO-Z automatic sliding gate openers and other brands' chain driven electric gate openers and sliding door openers, as well as other home, agricultural, and industrial equipment

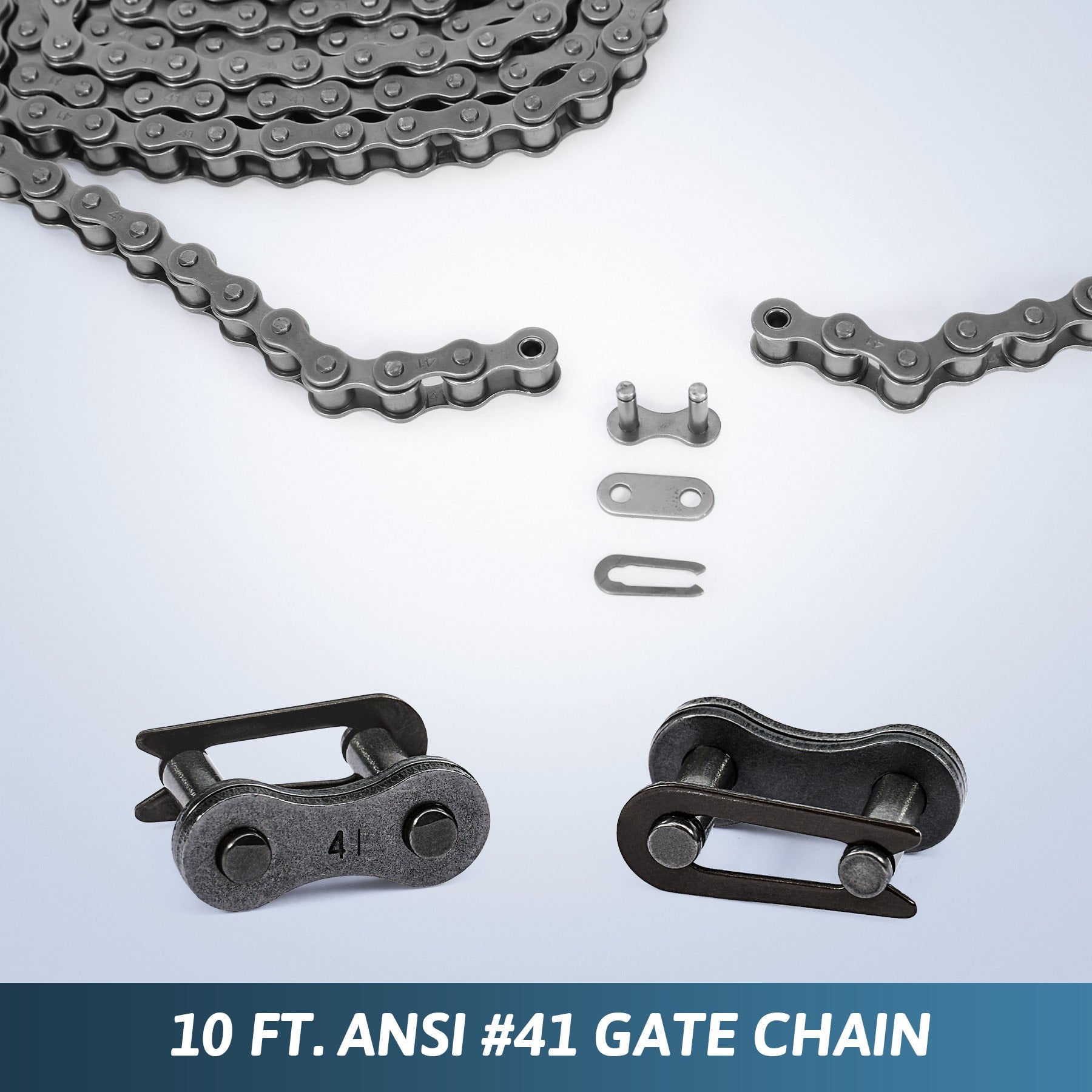

• CUSTOMIZABLE DESIGN: All of our 41 roller chain components are oriented during assembly to ensure Easy adjustment to different requirements of length, while 2 connecting links are included to easily replace or lengthen existing chains
• VERSATILE APPLICATION: This gate chain replacement and extension withstands harsh environments and extreme temperatures, handling an array of other applications, such as garage doors, hanger doors, go karts, mini bikes, scooters, ATVs, MTVs, dirt bikes, gatherers, bailers, and more
• SUPERIOR QUALITY: Our ANSI 41 chain undergoes strict quality measures including heat treatment and pre-lubrication to ensure longevity and optimal performance, while the pre-stressed and pre-stretched design ensures top performance with fewer adjustments

Specifications

• Material: Carbon Steel
• ANSI Size: #41
• Chain Length: 10 ft. (3 m)
• Pitch: 0.5 in. (12.7 mm)
• Roller Diameter: 0.31 in. (7.8 mm)
• Inner Width: 0.25 in. (6.25 mm)
• Pin Diameter:  0.14 in. (3.6 mm)
• Pin Length: 0.54 in. (13.75 mm)
• Inner Plate Height: 0.39 in. (9.9 mm)
• Plate Thickness: 0.05 in. (1.3 mm)
• Max. Load: 1.5 lbf. (6.67 kN)
• Weight per Length: 0.28 lb./ft. (0.4 kg/m)
• Net Weight: 3.1 lb. (1.4 kg)
• Warranty: 1 Year

Package List

• 1x ANSI #41 Gate Chain
• 2x Connecting Links
• 1x Instruction Manual
